Negative DOP Environmentally Friendly Processless Thermal CTP Plate
1. Application
EcooGraphix ECOO-G is a new, environmentally friendly, Development On Press CTP plate. It can be run directly on a printing press after imaging, without a need for chemical processing.
2. Characteristic
ECOO-G is double layer, and the emulsion layer will not dissolve into water, so it will not integrate into fountain solution; while the protection layer is well water-soluble, and it will be easy dissolved into the fountain solution.
3. Specification
| Plate Technical Specification |
| Model | ECOO-G |
| Plate Type | Non-ablation thermal-negative type |
| Application | High grade commercial and newspaper printing |
| Substrate | Electrolyte graining and Anodized AL substrate |
| Thickness | 0.15mm/ 0.30mm |
| Spectrum scope | 800-850nm |
| Platesetter | Various dominant thermal platesetters in the market |
| Low-energy imaging | 130-150mj/cm² |
| The period of latent image stabilization | ≤ 7 days |
| Recommended screen method | 1-99 @200Lpi AM/20u FM and mixture |
| The paper number of start-up | < 50 sheets |
| Safety Light | 1 hour under fluorescent lamp, no direct irradiation with natural light, 4 hours under yellow light |
| Processing | Without processing, directly on press |
| Run Length | 100,000 impressions, actual run length depends on printing conditions |
| Baking | No recomanded |
| Characteristics |
| Negative non-ablation photosensitive system |
| Compatible with the dominant devices in the market |
| Can be printed directly on the machine without any processing steps after scanning by themal CTP platesetter |
| Good dot reproduction, stable performance, wide processing latitude |
| Long stability of latent image, can be stored at least a week after plate-making |
| High quality aluminum substrate, professional coating formulation |
| Application |
| Suitable for sheet-fed offset press or high speed rotary offset press |
| Run length: 100,000 impressions |
| Suitable for different types of traditional inks and fountain solutions, including alcohol’s substitutes as fountain solutions |
| Unsuitable to improve run length by baking plates |
| Transportation And Storage |
| Packed in seal and stored by means of preventing from light/moisture, over heat and high humidity |
| Recommended conditions: 18℃-24℃, 40%-50% RH |
4. Technical Features
| Plate Features | ECOO-G | Kodak Sonora XP |
| Sensitive wavelength(nm) | 800-850 | 800-850 |
| Coating color | Light green | Light green |
| Sensitivity(mj/cm2) | 150 | 150 |
| Exposure in safe light | White light 1 hour; Yellow light 24 hours | White light 1 hour; Yellow light 24 hours |
| After image contrast | Can be spotted by eyes, but auto punching machine cannot recognize it | Can be spotted by eyes, auto punching machine can recognize it |
| Imaging device | Normal thermal CTP device | Normal thermal CTP device |
| Resolution | 1-99% @200lpi (dependent on CTP capability) | 1-99% @200lpi (dependent on CTP capability) |
| Run-length | 100,000 | 100,000 |
| Storage | 12 months (under recommend environment) | 12 months (under recommend environment) |
Applied parameters in Imaging device
| CTP Model Data | Kodak trendsetters | LOTTEM 400(TH1.7) | MAGNUS 400 | Screen 8600S |
| Laser power | 15-17W | 300-320mw | 19.5-21.5W | 80-90 % |
| Drum speed | 250-300rpm | 850-900rpm | 400-450rpm | 800-900rpm |
| Resolution | Customized | Customized | Customized | Customized |
| Parameter that need set up | Focus／ Zoom | Focus／ Zoom | Focus／ Zoom | Focus／ Zoom |
ECOO-G has a wide range of exposure energy, the range is 140-200mj/cm2(similar range to Sonora XP plate), and the dot gain percentage is not much different within this range.
*Note: Higher exposure energy will make the image contrast more clear, and benefit to the plate run length; While over high/low exposure energy will affect the image quality negatively.
Recommended application to press procedures of ECOO-G:
Clean all the inks on the blanket;
Start the press machine, apply the water roller, run 30-40 seconds;
Apply the ink rollers 20-30 seconds;
Apply the paper and start print.
Remark: If operate step 2 and 3 longer, paper will be wasted less.
5. Certificates

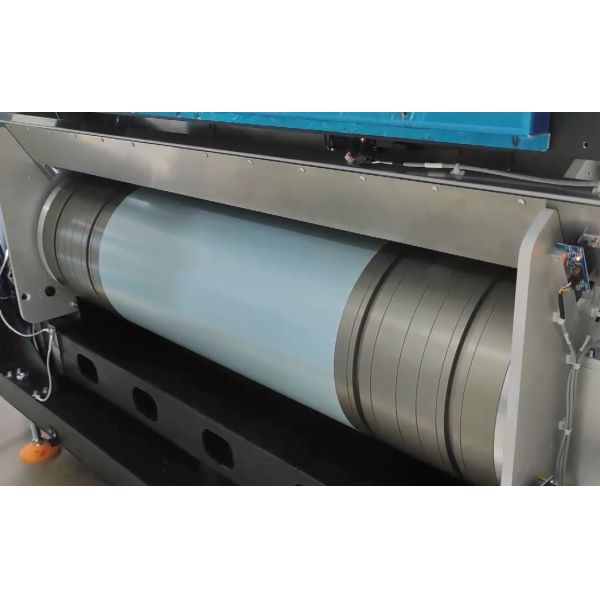

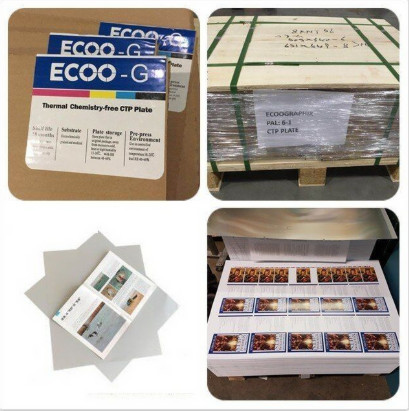

6. Plate Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
7. Certificates
8. FAQ
Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight ?
A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.
Q3: How long can the sample be ready ?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory ?
A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20’ container ?
A: About 20000-25000SQM.
