Automatic Packaging Grooving Machine High Speed

Name: Automatic Packaging Grooving Machine High Speed
Brand: EcooGraphix
Price: 1 USD

Wholesale Automatic Packaging Grooving Machine High Speed from china suppliers

Brand Name : EcooGraphix

Model Number : ECOO 1200B

Certification : ISO9000, CE

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, , T/T

Supply Ability : 500 Sets/Year

Packaging Details : Standard Exporting Package: Polywood Carton

Product name : Packaging Grooving Machine

Quantity of groove at a time : 8 slots

Working speed : 35m/min

Max size : 1000*600mm

Min size : 140*120mm

Carton paper thickness : 500-800 g/m²

Cardboard thickness : 0.8-4mm

Motor power : 2kw/380v 3 phase

Machine dimension : Machine dimension

Machine weight : 1250kg

Contact Now

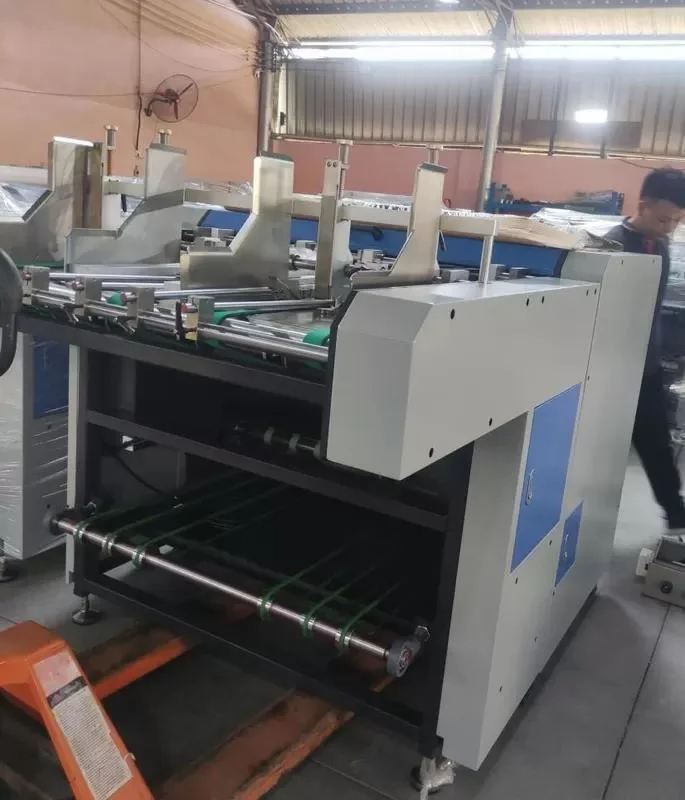

Automatic Packaging Grooving Machine Of High Speed

1. Slotting effect: no hairy edge, no dust, low noise;
2. Tool durability: equipped with special grinder, easy and fast operation;
3. Environmental protection and energy saving: the total power consumption of the main machine is 2.2 kw, and the whole consumption under slotting can be recovered. (Recycling scrap income can reduce electricity charges and props loss);
4. The slotting angle can be adjusted: the machine has an angle adjusting device, which can adjust itself on the machine (80-140 degrees) without changing the knife at different angles.
5. Thickness need not be adjusted: material slotting with different thicknesses need not be adjusted by machine, so it is convenient and fast to use.
6. High grooving accuracy: A new type of conveying mechanism is used to press the material needed to groove flat on the plane of large drum (diameter 60 cm) through belt, so as to ensure that the grooving position is accurate and without deviation.

Advantages

Automatic Packaging Grooving Machine High Speed

Specification

Automatic High Speed Grooving machine
Model	Ecoo-1200B
Quantity of groove at a time	8 slots
Working speed	35m/min
Max size	1000*600mm
Min size	140*120mm
Carton paper thickness	500-800 g/m²
Cardboard thickness	0.8-4mm
Motor power	2kw/380v 3 phase
Machine dimension	L2050W1520H1350mm
Machine weight	1250kg

Automatic Packaging Grooving Machine High Speed

Producing And Packaging

Automatic Packaging Grooving Machine High Speed

FAQ

1. Payment term?
Down payment 30% of the total payment shall be made by T/T once order is confirmed and the balance shall be paid by T/T before delivery.

2. Installation and after service?
Conditional and prior to mutual agreement between the seller and the buyer.

3. Warranty?
12 months from the date of arrival at the port of destination. Damages caused by faulty operation do not fall under warranty wear and tears parts are not under warranty.

4. Package?
Seaworthy packaging (vacuum packed with aluminum foil in wooden cases).
